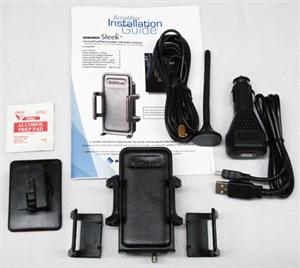

Single User Kit includes:
- Sleek® 4G 700/800/AWS 1700-2100/1900 Cradle Smart Technology II™
- 5V/2A DC/DC Power Supply
- USB Cable
- Mini Magnet Antenna
- Cradle Mounting Kit
**Note - this cradle will work for all carriers but is specifically recommended for Sprint and T-Mobile users to increase 4G, 3G and 2G voice and data services.**
Now there’s a signal booster for those who need enhanced coverage in
their vehicle for devices operating on the 4G networks of any major
North American cell service provider – the Sleek 4G from Wilson
Electronics. The Sleek 4G also amplifies preexisting signals, which
includes all major carriers and their legacy 2G & 3G voice and data
services. This provides the user a strong, reliable signal even where 4G
services are unavailable.
This powerful signal booster and device cradle helps you stay connected
by providing a strong reliable signal in weak-signal areas on five
frequency bands, reducing lost connections and speeding data transfer
rates. It boosts both voice and data communication – making it perfect
for phones, data devices and cellular Wi-Fi hotspots.
Wilson boosters feature cell site protection techniques developed
through cooperation with major cellular carriers that prevent the
possibility of interference with any nearby cell tower.
• Boosts 4G signals on all major carrier networks in North America
• Boosts legacy 2G & 3G signals on all carrier networks
• Enhances both voice and data communications
• Provides a strong, reliable signal in weak signal areas
• Faster, cleaner 3G & 4G data transfers
• More than 20 times the power of your cell phone alone
• Extends device battery life
• Simple DIY installation
Product Number
|
813425
|
|---|
|
Connectors
|
SMA Female
|
|
|
50 ohms
|
|
Frequency
|
698-746 MHz / 746-787 MHz / 824-894 MHz / 1850-1995 MHz / 1710-2155 MHz
|
|
Power output for single
cell phone (uplink) dBm
|
700 MHz
(band 12/17) |
700 MHz
(band 13) |
800 MHz |
1900 MHz |
1700/2100 MHz |
|
Uplink
|
27.9 |
28 |
28.6 |
26.6 |
28.2 |
|
Downlink
|
3.1 |
3.6 |
2.4 |
9.2 |
9.4 |
|
Noise Figure
(typical)
|
3 dB nominal
|
|
Isolation
|
> 40 dB
|
|
Power Requirements
|
5.5V DC, 2.5 A
|
|
Dimensions
|
2.25 x 4.25 x 2.5 (inches) / 5 x 9.5 x 5.6 (cm)
|
|
Weight
|
2.5 (oz) / 0.07 (kg) |
