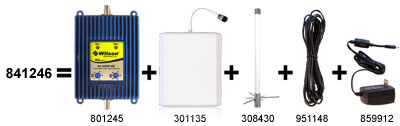

Marine Kit includes:
- AG SOHO 60 dB Adjustable Gain 800/1900MHz Smart Technology II™ Marine Signal Booster w/ FME- Male Connectors
- Panel Antenna

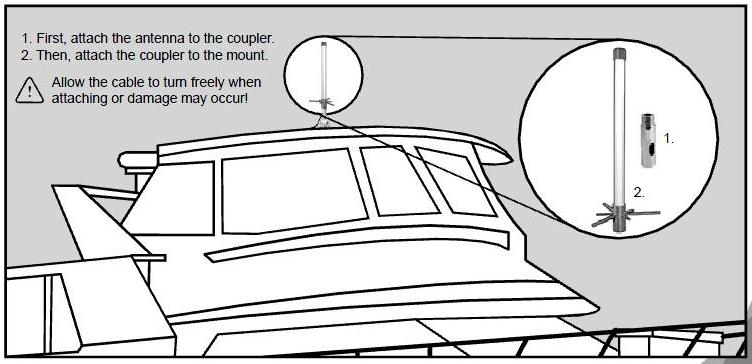

- Marine Antenna
- Cable with N-Male connectors
- Power cord
**Note - this booster will work for Verizon, AT&T, Sprint and T-Mobile users to increase 3G and data card signal coverage.**
For users needing improved cellular performance in a Small Office or Home Office environment, Wilson’s AG SOHO 60 Cell Phone Signal Booster
is a great solution. The AG SOHO 60 supports multiple cell phones and
data cards simultaneously, and works with all major North American cell
phone carriers, which include both Cellular (824-894 MHz) and PCS
(1850-1990 MHz) carrier frequency bands. It can be paired with a wide
variety of Wilson indoor and outdoor antennas for a truly customized
system. Depending on outside signal strength, the AG SOHO 60 can improve
cellular strength in a single room or an entire home.
-
Adjustable Gain
-
Greatly reduces dropped calls, extends signal range, and increases data rates
-
No physical connection to your cell phone or data card
-
Allows multiple phones and cellular data cards to be used simultaneously
-
Oscillation (or interference) detection and automatic shutdown with auto reset
-
Overload protection circuit – protects cell towers from being overloaded
-
Amplifies signals both to and from the cell tower
-
Maximum 1500 milliwatts output power - As much as 15 times more powerful than a typical cell phone
-
Works on all generations of CDMA, TDMA, GSM, and 3G
-
Power control logic ensures maximum gain is within cellular standards
-
Extends battery life – Booster enables phone to work at reduced power
-
AC power supply included
-
FCC and IC type accepted
Product Number
|
801245
|
|---|
|
Frequency
|
824-894 MHz / 1850-1990 MHz
|
|
Gain
|
55 dB / 60 dB
|
|
Max Uplink Power
|
1,200 mw / 1,114 mw
|
|
Max Downlink Power
|
26 dBm / 25 dBm
|
|
Noise Figure
|
3 dB / 4 dB nominal
|
|
Flatness
|
±5 dB
|
|
Power Requirements
|
6 V DC / 3 A max
|
|
Connectors
|
FME-Male 50 ohms
|
|
Dimensions
|
5.6 x 3.6 x 1.7 (inches) / 14.2 x 9.1 x 4.4 (cm)
|
|
Weight
|
1.5 lbs / 0.7 kg |
|
|
|
 |
|
 |
|
